TD 810 series

TD 810 series

Download Leaflet

Categories Ho Hsing servomotors, Miscellaneous, MOTORS

Description

Description

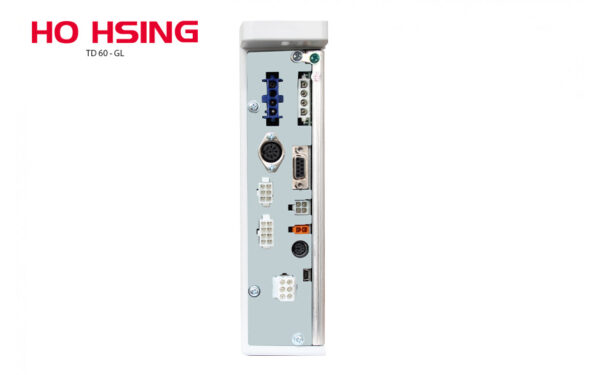

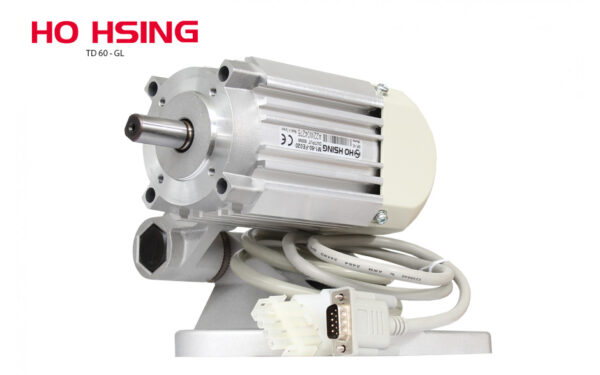

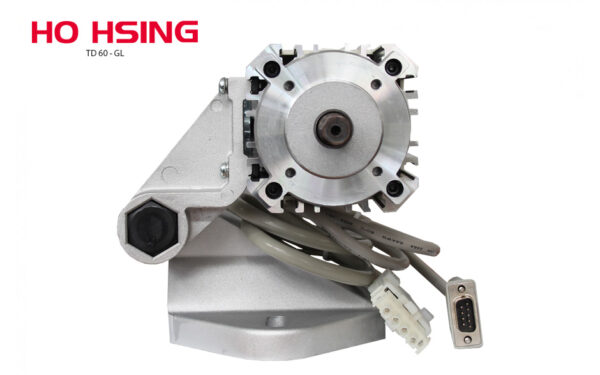

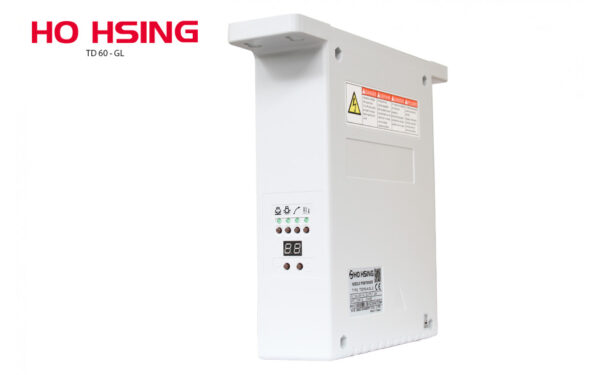

TD60GL – TD 815-4-GL-220

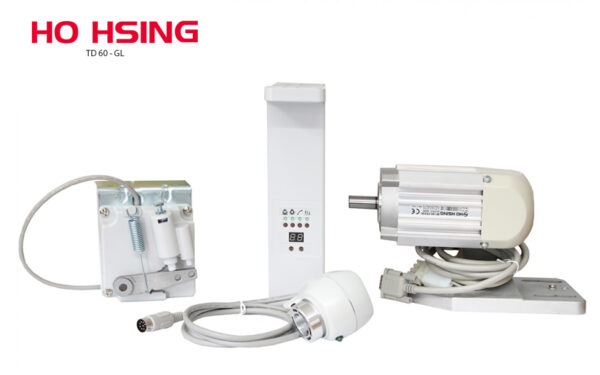

A simple small and low cost control box together with 600 Watt minimotor for under the table mounting. This set is including synchroniser, speed control unit and connector set.

TD6000 – TD 816-4-GL-220 control box only for MT0250 minimotor (500 Watt)
TD7500 – TD 817-4-00-220 control box only for MT0275 minimotor (750 Watt)

Available functions: needle positioning, trimming / tension release, presser foot lift by air cylinder (no magnet) and needle cooling. Safety switch input available. Can be used on interlock with under bed trimmer and light to medium weight walking foot applications.
