Description

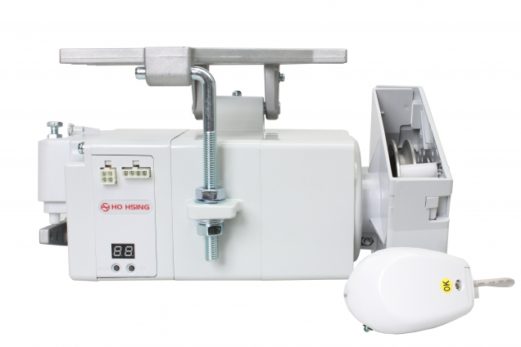

The renewed G-series is here to meet the demand for an economical, high quality energy saving servo motor with needle positioning and some new special features. The speed can easily controlled with the new potentiometer on the motor. The new G-series can now also be used on skiving machines, auto string thrusting machines and as an induction motor,  because of the new automatic continuous running function. With a new wide range of parameters the G-series can be set to drive your machine perfectly and much smoother.

G40-1: 400 Watt motor body for high speed lockstitch, overlock, blind stitch and normal interlock.
G40-2: same as G40-1 but with output for PNEUMATIC presser foot lifter and needle cooling (motor run signal).
G60-1: 600 Watt motor body, because of the relative high torque the G-60 can be used on some heavier machines like light to medium weight walking foot machines.
G60-2: same as G60-1 but with output for PNEUMATIC presser foot lifter and needle cooling (motor run signal).
G60-1-NP: same as G60-1 only with speed potentiometer to limit the max. speed easily.
G75-2: same as G60-2 but with 750 Watt power (output for PNEUMATIC presser foot lifter and needle cooling /motor run signal). Not suitable for machines with a big handwheel like Global WF 9204 / 9205.

External synchro 700-1 comes as an option. G series can work with or without external synchroniser and there is no need to change any settings for this, the control box will automatically detect the external synchro and adjust itself.
