BT 1335 LH

BT 1335 LH



Technical specifications:

  • Machine speed: 1200 spm
  • Feeding system: by pulse motor (X-Y)
    Hook type: large rotating ook
  • Stitch length: max 12 mm
  • Presser foot lift: max 16 mm
  • Clamp lift: up to 22 mm (pneumatic)
  • Needle type: DPx17
  • Power source: 220-240 V, single phase, 50-60 Hz direct drive AC servo motor
  • Sewing range 250×160 mm

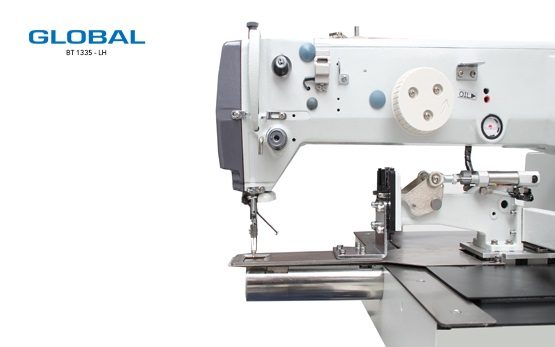

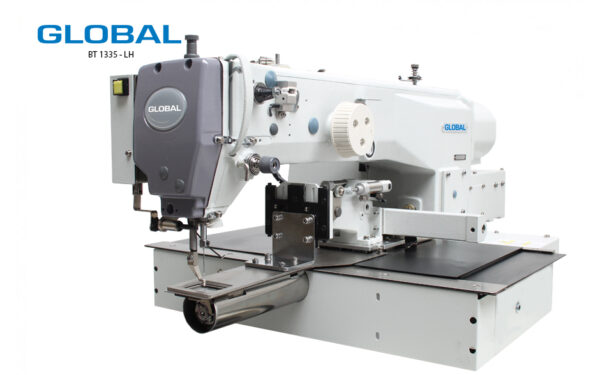

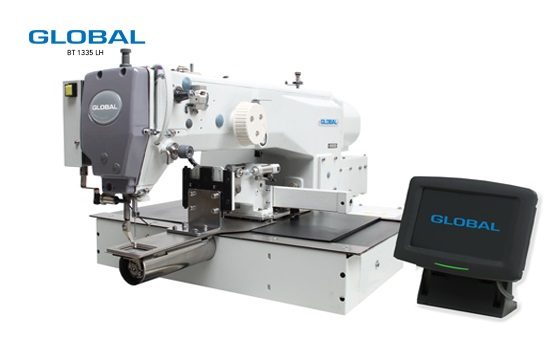

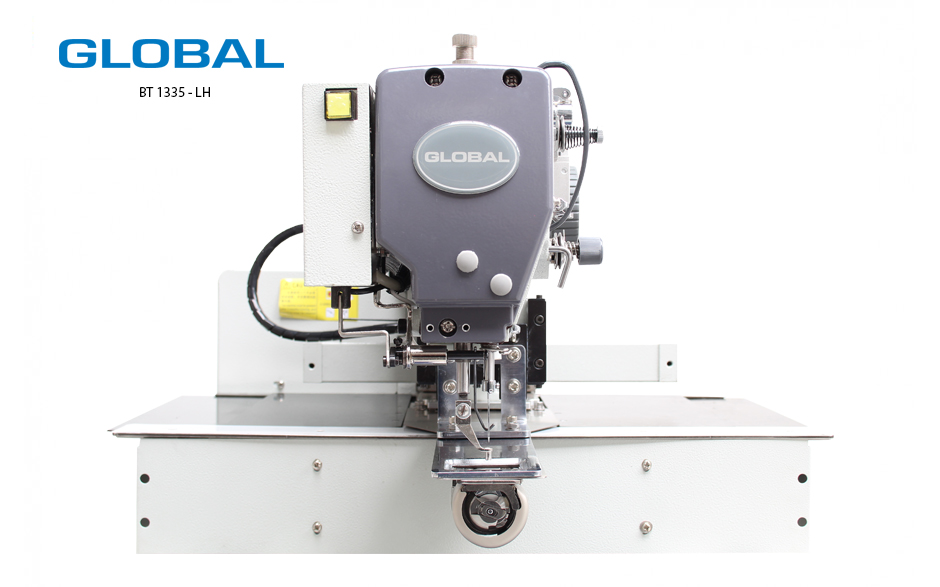

Global BT 1335 LH
Direct drive programmable electronic pattern stitcher with cylinder bed and large capacity hook. This machine has standard a thread breaking device. Needle cooling and bar code reader are optional available. This machine is suitable to sew medium / heavy materials. The cylinder circumference is 180 mm. There is an optional frame available to use the machine, with a sewing area of 250 x 160 mm. It is possible to program the machine with the pattern design software for PC (optional). The machine is delivered complete with table top, stand and a direct drive mini servomotor.

Dahao Technologies allows you to design and modify patterns both on the easy to use touch panel and by software and can be directly downloaded by USB. Machine can read : .DXF .NSP .DST .SEW .EMB files



labels or patterns inside shoes, or different kind of designs to sew shoulder straps onto bags. Sewing area is 250 x160 mm. The height of the presser foot can be adjusted by a stepping motor. The machine is delivered complete with table top, stand and direct drive mini servomotor. Including thread breaking device.
