CBZ 1530 series

CBZ 1530 series

    The product specifications for the CBZ 1530 (H):

    • Machine speed: max 1600 spm
    • Oiling system: fully automatic
    • Stitch length: max 4 mm
    • Presser foot lift: by hand max 7 mm, by knee max 10 mm
    • Needle type: Standard type: 135x17
    • Zig Zag width: Standard type: max 8 mm
    • Cylinder circumference: 220 mm, 180 mm (NA)

Description

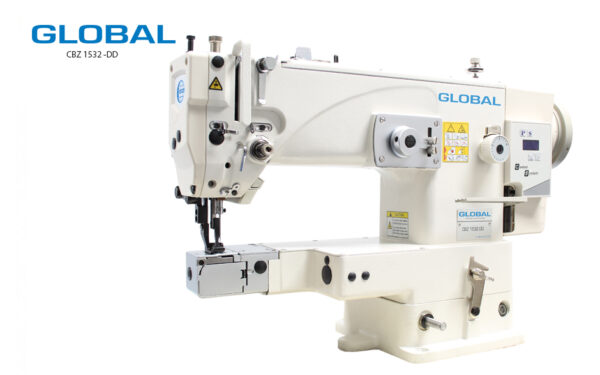

CBZ 1532 H-DD
– All in one, single needle, upper- and lower feed, cylinderbed, zig-zag sewing machine for binding. The machine has fully automatic lubrication and motor, control box and control panel are integrated in the machine. The bobbin winder is built-in the machine head. The machine has a is equipped with a large horizontal axis rotary hook for sewing light to medium material, such as leather, canvas, etc.
Stitch type: two point zig-zag

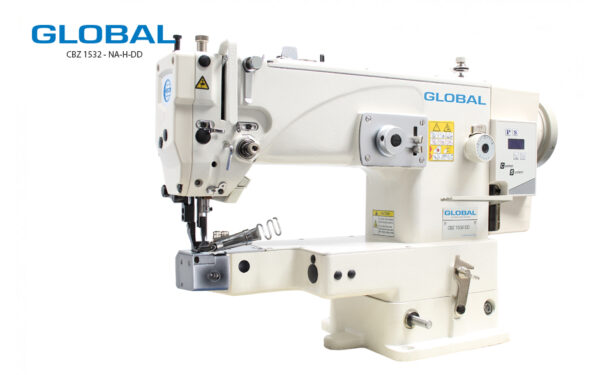

CBZ 1532 H-NA-DD
– Same as CBZ 1532 H-DD, but with narrow cylinder arm and standard hook.
CBZ 1532 XL-NA-DD
Same as CBZ 1532 H-NA-DD, however with extra long cylinder arm.
CBZ 1533 H-DD
– Same as CBZ 1532 H-DD, but with three point zig-zag stitch type
CBZ 1534 H-DD
– Same as CBZ 1532 H-DD, but with four point zig-zag stitch type.
