The product specifications for the BT 1000×600-360 are:

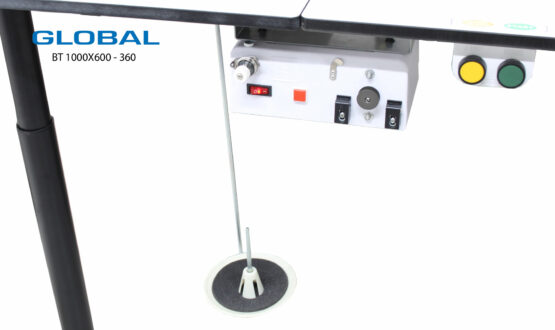

BT 1000×600-360
This programmable pattern sewing machine is suitable to heavy materials with 360 degrees rotating of the machine head as well as the hook unit, both adjusting the direction of sewing. Thanks to this design the machine takes the stitch precisely and eliminates the risk of stitch skipping, regardless of the sewing direction.
The construction of the machine allows lifting the sewing head, which is used in the produciton of bags, automotive and shoes and many more. Template can be adjusted to any design, depending on the sewing pattern.
Technical specification:
* 360 degrees rotation of the machine’s head as well as hook unit – both adjusting to direction of sewing.
* Built-in fast and precise stepping motors, responsible for sewing head, the hook unit and the work of the rail in the X and Y axis for the driving of the needle bar.
* 7-inch LCD touch panel with USB port for data transfer and storing patterns in internal memory up to 999 patterns.
* Max. stitches amount in pattern in 20.000 stitches.
* Editing of already existing as well as programmed patterns.
* Automatic start-stop switch, pause / continue function.
* Rotating angle programmable in 0,05 degree steps.
* Automatic thread trimmer
* Safety stitch and thread breaking detection
* Stitch length 0,5 – 12,7 mm
* External bobbin winder
Dahao Technologies allows you to design and modify patterns both on the easy to use touch panel and by software and can be directly downloaded by USB. Machine can read : .DXF .NSP .DST .SEW .EMB files
