NF 3901 series

NF 3901 series

For downloads see our downloads page for the High Speed single needle, needle lockstitch machines.

  • *Model

    Reset options

    Technical specifications:

    • Machine speed: max 5000 spm,
    • Oiling system: fully automatic
    • Stitch length: max 4 mm
    • Presser foot lift: by knee; max 13 mm, by PFL, max 13 mm (electric)
    • Needle type: 134 R
    • Power source: 240 V, single phase, 50/60 Hz direct drive mini servo motor
    • Led-light: standard

    Technical specifications:

    • Machine speed: max 3500 spm,
    • Oiling system: fully automatic
    • Stitch length: max 4 mm
    • Presser foot lift: by knee; max 13 mm, by PFL, max 13 mm (electric)
    • Needle type: 134 R
    • Power source: 240 V, single phase, 50/60 Hz direct drive mini servo motor
    • Led-light: standard

    Technical specifications:

    • Machine speed: max 5000 spm,
    • Oiling system: fully automatic
    • Stitch length: max 4 mm
    • Presser foot lift: by knee; max 13 mm, by PFL, max 13 mm (electric)
    • Needle type: 134 R
    • Power source: 240 V, single phase, 50/60 Hz direct drive mini servo motor
    • Led-light: standard

    Optional

    Technical specifications:

    • Machine speed: max 3500 spm,
    • Oiling system: fully automatic
    • Stitch length: max 4 mm
    • Presser foot lift: by knee; max 13 mm, by PFL, max 13 mm (electric)
    • Needle type: 134 R
    • Power source: 240 V, single phase, 50/60 Hz direct drive mini servo motor
    • Led-light: standard

    Optional

Please choose your options

Description

High speed, needle feed lockstitch machines

NF 3901 DD
– High speed, direct drive needle feed lockstitch machine with fully automatic lubrication. Equipped with built in motor and a separate control box. The bobbin winder is built in the machine head.
NF 3901 LH-DD
– Same as above, but equipped with large hook.

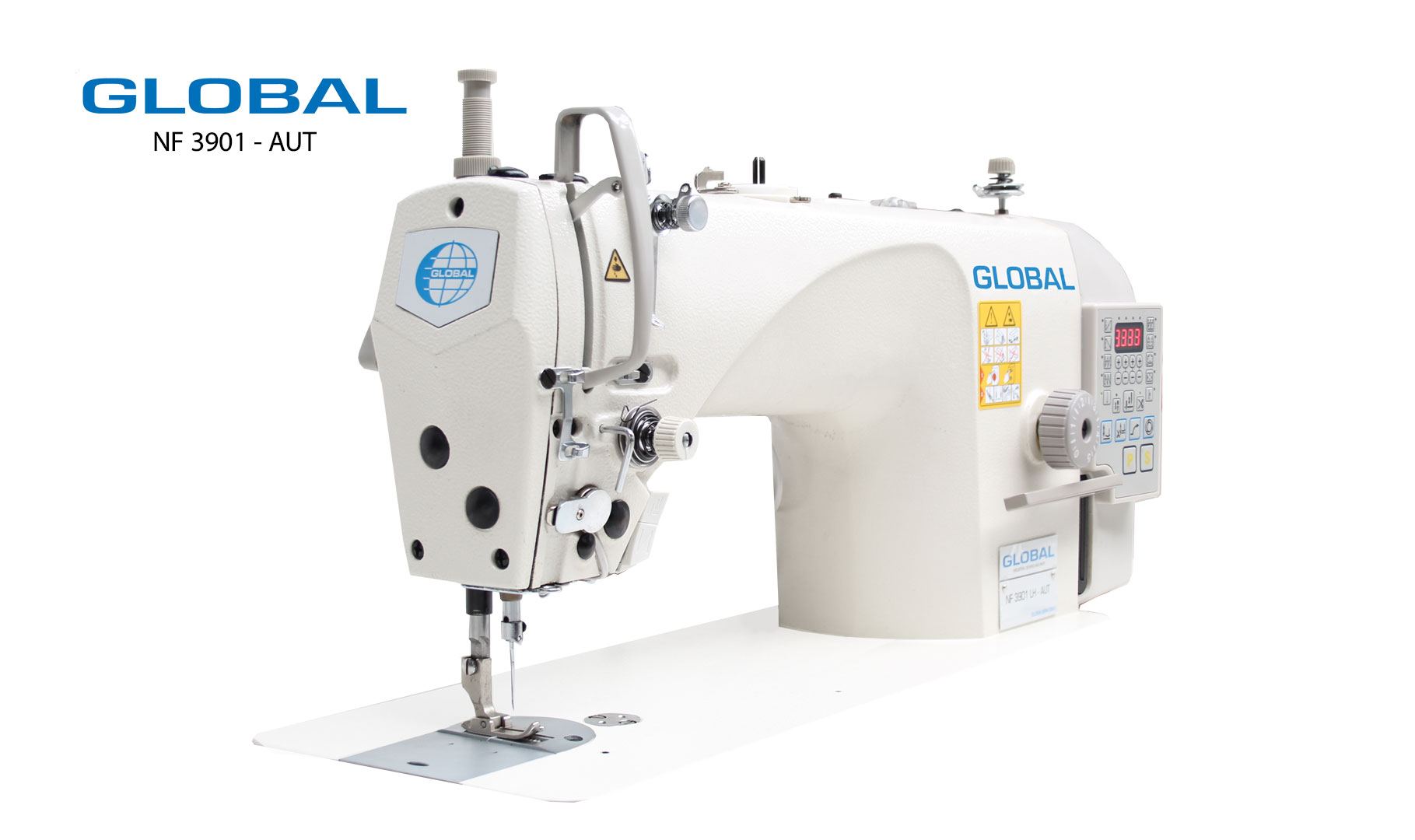

NF 3901 AUT
– All in one, high speed, direct drive needle feed lockstitch machine with thread trimmer and automatic back tack. The machine has fully automatic lubrication and motor, control box and control panel are integrated in the machine. Presser foot lift is available as an option.
NF 3901 LH-AUT
– Same as above, but equipped with large hook.

Our experience. Your succes.

In our 12,000 m2 headquarters in the Netherlands, we keep a large stock of sewing machines and spare parts and have a unique museum, which shows the history of the sewing machines over the last 180 years.

Global International BV is very proud of its own line of “Global” industrial sewing machines partially produced at our own facilities.

This sewing machine program contains over 400 different sewing machine types for the garment, automotive, leather and shoe industries. Global sewing machines stand for quality, durability and are always state of the art with the newest innovations in the branch!
